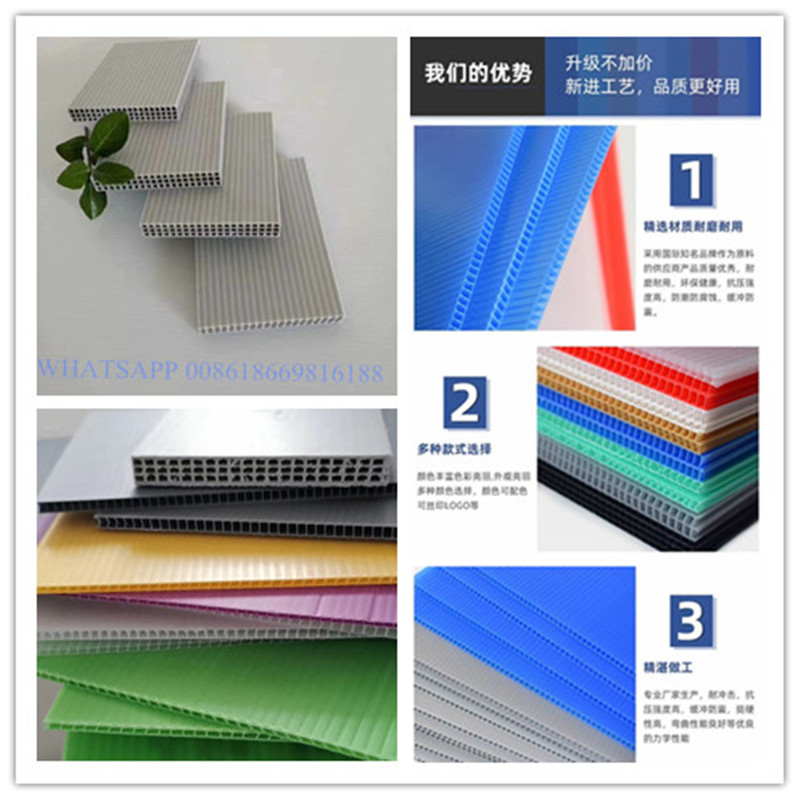

Daim ntawv thov tseem ceeb ntawm PP Hollow Sheet
1. Kev hloov pauv ntawm cov khoom lag luam ntim khoom: Cov khoom siv hluav taws xob ntim khoom ntim khoom ntim, cov hnab yas ntim cov thawv ntim khoom, cov ntawv ntim riam cais lub tank, tiv thaiv zoo li qub rau kuv hollow phaj, conductive hollow board turnover kuv.; turnover box, conductive hollow board turnover box.
2. Lub hnab ntim khoom pallet: lub hnab liner, hnab ntim phaj, clapboard.
3. Lub raj mis kev lag luam: phaj iav Hoobkas, lub raj mis yas dhos, cov khoom ntim cov khoom sib cais, cov kaus poom tu, phaj.
4. Mechanical industries: tshuab cushion phaj.
5.Kev tshaj tawm kev lag luam: PP hollow boards tso saib cov thawv, cov khoom siv, cov ntawv tshaj tawm, Corona board.
6. Kho kom zoo nkauj hauv tsev: qab nthab, grille, chav dej tso quav,
7.Cov rooj tog kev lag luam: rooj kas fes phaj, rooj tog phaj.
8. Kev ua liaj ua teb: txhua yam ntawm lub thawv txiv hmab txiv ntoo, zaub crates, ntim tshuaj tua kab, ntim zaub mov, ntim dej haus,
tsev cog khoom ru tsev.
9. Cov khoom ua si: ntse blackboard, hnab ntawv.
10. Kev lag luam automotive: kauj phaj, rear cais phaj.
11. Kev lag luam hluav taws xob: tub yees, tshuab ntxhua khaub ncaws rov qab, bulkhead.

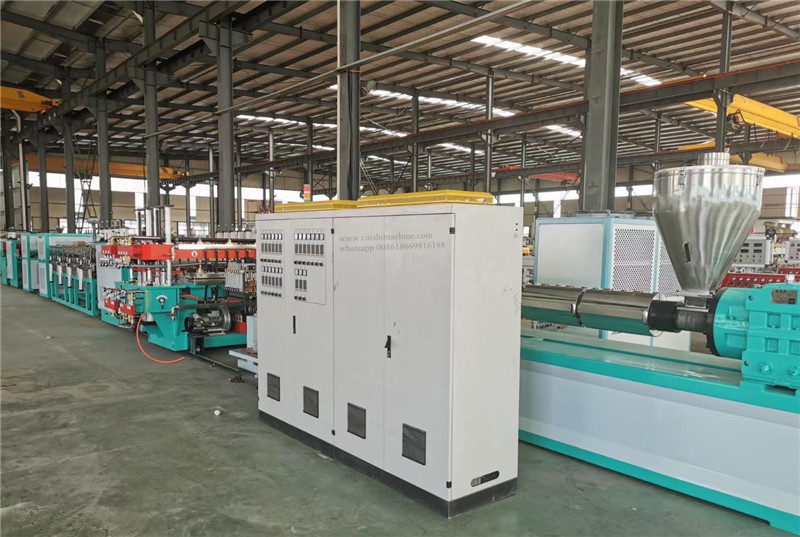

Daim ntawv teev cov kab ntau lawm
| No | Lub npe | hom | Ntau | Cov cim |
| 1.1 | stirring tshuab | SJJB-1000kg | 1set ib | Ntsia hlau feeder |
| Ib leeg ntsia hlau extruder | SJ-110 × 35 | 1set ib | AC lub cev muaj zog Siemens Bede, thoob ntiaj teb kev lag luam reducer nrog txias, PP hollow phaj tshwj xeeb ntsia hlau | |
| 1.2 | Hluav taws xob tswj qhov system | 1set ib | ABB zaus converter, Siemens low voltage apparatus, Omron kub tswj ntsuas | |
| 1.3 | Pwm | SJJ-1800 | 1set ib | Thickness 2-6mm, dav 1600mm |
| 1.4 | Tuag txhawb | SJJ-1800 | 1set ib | Lub vuam qhov siab ntawm square tube steel phaj yog adjustable |
| 1.5 | Chaw nres tsheb Hydraulic | 1set ib | Nrog lub zog cia tank | |
| 1.6 | Hollow lattice phaj teeb rooj | SJDT1560mm × 2800mm | 1set ib | Lub tog raj kheej SC200 * 300 = 4pcs, Centrifugal ntxuam 1.5KW.Puab platform txhawb nqa, siv 40mmThick steel phaj nrog vortex lub tshuab nqus tsev twj |
| 1.7 | Thawj tsib cov menyuam traction ntaus ntawv | SJQY 230mm × 1800mm | 1set ib | 5 khub ntawm 10 cots, lub cev muaj zog 5.5kw xwed84-121 / 1-5.5kw-4p, helical iav tsav, lub zog loj thiab kev ua haujlwm ruaj khov. |
| 1.8 | Trimming tshuab | SWB-1800 | 1set ib | NMRV reducer kev hloov kho, steering hniav txiav, 2 auxiliary cuab yeej tuav, longitudinal trimming |
| 1.9 ib | Cua sov straightening ntaus ntawv | SJHX4000 × 1800mm | 1set ib | Stainless hlau cua sov tube φ nees nkaum × 1800 = 28 daim, Passive stainless hlau yob φ xya caum × 1800 = 7 daim (tsim nrog bearings ntawm ob qho kawg) Omron Zone 8, Nyiv, kub tswj, ywj siab yas txau hluav taws xob lub thawv |
| 1.10 ib | cua txias system | SJLQ-1800 hli | 1set ib | 4 teeb ntawm x2 320W cua txias kiv cua tshuab |
| 1.11 | Qhov thib ob thiab thib peb cov menyuam traction ntaus ntawv | SJQY 230mm × 1800mm | 1set ib | 3 khub ntawm 6 roj hmab rollers, lub cev muaj zog 3 kW xwed63-121 / 1-3kw-4p, helical iav tsav, lub zog loj thiab kev ua haujlwm ruaj khov. |
| 1.12 | Slitting tshuab | TSW-1800 | 1set ib | NMRV reducer kho qhov txiav ntawm lub kauj thiab 6 tus tuav cov cuab yeej, thiab txiav qhov dav tuaj yeem hloov kho dawb |
| 1.13 | Transverse txiav tshuab | SJHQ 1800 hli | 1set ib | Hniav transverse txiav, servo lub cev muaj zog 1.0kw, R series reducer, tswj tsev txais PLC tswj qhov system. |
| 1.14 | Txais platform | SHT1800 × 1000mm | 2sets ua | Nws tuaj yeem siv raws li qhov xwm txheej ntau lawm, thiab ob qho tib si tuaj yeem ua ke |
2.
| No | Specification | |
| 2.1 ib | Cov khoom nyoos | PP + Filling masterbatch |
| 2.2 ib | Daim ntawv loj | 1600 × 2-6 hli |
| 2.3 ib | Ceev | 0.5-8m / min |
| 2.4 ib | Max tso zis | 300 公斤 |
| 2.5 ib | Tshuab loj | 30000 × 3500 × 2800 L × W × H |
| 2.6 ib | Qhov hnyav | 18t ib |
| 2.7 ib | Tag nrho lub zog | 155 KW TSI |
| 2.8 ib | Lub zog siv zog tiag tiag | 95 kW ua |
| 2.9 ib | Kev siv roj | 0.43/min |
| 2.10 ib | siab | 0.5-0.7MPA |
| 2.11 ib | Kev khiav dej num | 0.43/ min |
| 2.12 ib | Hwj chim | AC380V ± 10% 50HZ |
| 2.13 ib | Dej | Circulating dej ntawm chiller los yog circulating dej ntawm pas dej ua ke |
| 2.14 ib | ib puag ncig ua haujlwm | 0-40 ℃ |
Ib leeg ntsia hlau extruder sj110
Screw txoj kab uas hla: 110mm
Ntev txoj kab uas hla ntawm cov ntsia hlau: 35: 1
Ntsia hlau qauv: tshwj xeeb ntsia hlau rau PP daim phiaj phaj
Cov khoom siv ntsia hlau: 38crmoaia nitriding kho
Nitriding txheej qhov tob: 0.4-0.7mm
Screw hardness: HV ＞ 740
Barrel hardness: HV ＞ 940
Screw ceev: 72 rpm
Lub cev muaj zog lub cev muaj zog: 90kw Siemens Bede
Cheebtsam cua sov: cam khwb cia txhuas rhaub 6 cheeb tsam 50KW
chim txias centrifugal kiv cua txias: Zone 6 × 0.25kw
Extrusion muaj peev xwm: 300-400 kg / h
Installation form: kab rov tav installation
Lub reducer mechanism chav tsev reducer absorbs Italian tshuab thiab txais yuav tawv hniav nto helical iav sib tsoo tshuab.
Lub iav reducer yog ua los ntawm 20CrMnTi, uas yog carburized, av thiab quenched, nrog ib tug hardness ntawm HRC58-62 degrees.Nws yog ua tiav los ntawm kev sib tsoo.
Cov khoom siv ntawm lub thawv xa khoom yog 20crmoti, uas yog precision machined thiab nruab nrog yuam lubrication thiab txias chav tsev.
Txias hom: cov roj iav yog txias los ntawm cov dej ntws los ntawm lub condenser
Lub zog xa hluav taws xob muaj cov qauv kev sib txuas ncaj qha, thiab kev ua haujlwm ruaj khov.
Imported thrust bearing: siab torque tso zis
Lub npog tiv thaiv ntawm chav tiv thaiv yog ua los ntawm A3 steel, thiab cov cua kub extrusion yog ua los ntawm stainless hlau phaj.
Cov txheej txheem ncej txais cov square tube vuam thiab cov qauv siv zog.
hluav taws xob tswj system;
Kub tswj meter Nyiv Omron kub tswj meter
Siemens contactor
Zaus converter ABB zaus converter

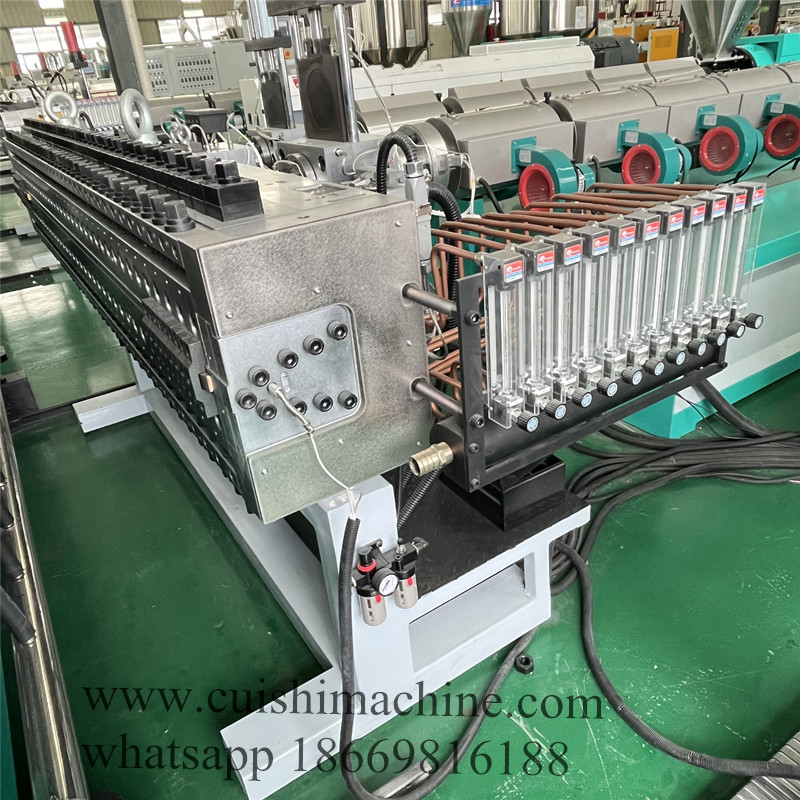

Hollow lattice phaj extrusion tuag
Daim ntawv: hanger hom phaj pwm.
Qhov dav dav ntawm lub taub hau tuag: 1800mm, khoom dav 1600mm
Khoom thickness: 2-6mm
Channel hom: khaub ncaws hanger channel
Cov tuag yog ua los ntawm cov hlau zoo hlau 5CrNiMo forgings, thiab qhov saum npoo ntawm tus khiav sab hauv yog chrome plated thiab polished.
Pwm qauv: cov qauv pwm absorbs cov cuab yeej siv txawv teb chaws, thiab sab hauv ntawm pwm kab noj hniav yog plated nrog nyuaj chromium thiab polished rau ib daim iav ci.
Thickness adjustment: adjustable bolts yog teem rau ntawm daim di ncauj tuag, uas yuav kho tau thaum ua daim hlau nrog txawv thickness.
Daim ntawv cua sov: stainless hlau hluav taws xob hluav taws xob cua sov pas nrig yog siv rau cua sov, nrog cov paug tawm thiab zoo stability
Cua sov seem: cheeb tsam 10 × 3kw
Pwm trolley, hom bracket, nrog lub log mus ncig.
Khoom siv: square tube steel phaj vuam txhawb cov qauv
Txoj kev hloov kho: ntsia hlau kho
Kho qhov siab: 100mm
Hydraulic ceev screen changer
Qhov siab tshaj plaws ntawm txuas hydraulic net: 16MPa
Control: solenoid valve
Qauv: kem hom
Form hydraulic ceev screen changer
Hydraulic twj tso kua mis zog 3kw nrog lub zog cia lub tog raj kheej
Cua sov chav tsev: stainless hlau hluav taws xob cua sov pas nrig yog saws, thiab lub hwj chim yog 4kw.
Qhov ntsuas kub ntsuas tau txais PT-100 platinum tsis kam.Qhov ntsuas kub tswj yog Omron ntsuas kub tswj ntsuas.
Kev ntsuas siab yog nruab nrog lub ntsuas hluav taws xob hauv tsev los tso saib lub siab nyob rau hauv pem hauv ntej ntawm lub network
Lub vijtsam hloov pauv muaj ob qhov chaw nres tsheb, thiab lub vijtsam lim tuaj yeem hloov pauv yam tsis muaj kev kaw los ntawm kev tswj hwm ntawm hydraulic system.
Lub cev ntawm cov cuab yeej yog ua los ntawm tag nrho cov hlau alloy, thiab lub phaj hlau txawb yog ua los ntawm cov hlau carburized.
Hollow lattice phaj teeb rooj
Txias teeb phaj loj 800x1800 × 2 (ob ntu)
Khoom siv: 40Cr
Cov txheej txheem kev kho mob: quenching thiab tempering + nyuaj chromium plating + polishing
Cov khoom siv: steel phaj phab ntsa, 100x150 square yeeb nkab ncej vuam
Lifting hom kev teeb tsa phaj: lub tog raj kheej nqa
Lub tog raj kheej qauv sc200x300
Xauv hom xauv lub cuab yeej
Xauv hom: Phau ntawv
Kev kho hom ntawm sab sauv formwork: fine adjustment ntsia hlau
Rising synchronizer synchronizing iav
Kev kho cov txheej txheem ntawm nqa phau ntawv qhia tom qab kho kab ke: quenching thiab tempering + nyuaj chromium plating + polishing
Pem hauv ntej thiab nram qab taug kev hom ntawm hluav taws xob platform
Electric stroke: 800 hli
Lub cev muaj zog: 0.37kw
Daim ntawv Reducer nmrv-40 / 75-500-0.37
Zuag qhia tag nrho qhov siab hloov hom ntawm lub platform: cab iav ntsia hlau pas nrig of elevator nrog handwheel
Qauv: swl-5t-8-i-500
Ntim: 4sets
Lub tshuab nqus tsev vacuum vortex lub tshuab nqus tsev vacuum
Ntim: 4sets
Platform zuag qhia tag nrho tswj ywj siab tswj vaj huam sib luag
4.6 thawj tsib cov menyuam traction ntaus ntawv
Roj hmab cov khoom siv: nitrile roj hmab
Loj: 230mm x 1800mm
Lub cev muaj zog 5.5kw
Linear ceev 1-8m / min
Txoj cai hom ABB sib txawv ntawm zaus ceev tswj
Lifting hom pneumatic lifting
Kho lub tog raj kheej
Iav form helical iav
Tsiv rov qab mus rau synchronously nrog lub platform
Hom kev sib txuas nrog lub platform yog niam ntsia hlau thiab tuaj yeem hloov kho nyias
Zuag qhia tag nrho qhov siab hloov kho ntsia hlau pas nrig hloov kho
4.7 trimming tshuab
Cov cuab yeej tuav khoom 45 steel quenched thiab tempered galvanized
Width adjustment dawb dav trimming
Cov cuab yeej so ncej hloov kho NMRV reducer phau ntawv hloov kho
4.8 cua sov thiab straightening ntaus ntawv
Cua sov txoj kev: stainless hlau cua sov yeeb nkab
Tswj hom Nyiv Omron ntsuas kub tswj ntsuas
Tus naj npawb ntawm cheeb tsam sab saud thiab qis: 8
Tus naj npawb ntawm cov cua sov raj: 28
Tus naj npawb ntawm passive rollers: 7
Lifting hom lub tog raj kheej tswj kev ywj pheej hluav taws xob txee nrog qhov chaw tso khoom
4.9 Cua txias ntaus ntawv
Txoj kev txias: cua txias
Ntxuam zog 320W
Quantity: nce thiab nqis 2 pawg X4 teeb / pab pawg
Dav: 1800mm
4.10 thib ob thiab thib peb cov menyuam traction ntaus ntawv
Roj hmab cov khoom siv: nitrile roj hmab
Loj: 230mm x 1800mm
Lub cev muaj zog 3kw
Linear ceev 1-8m / min
Txoj cai hom ABB zaus hloov pauv kev cai
Lifting hom pneumatic lifting
Kho lub tog raj kheej
Iav form helical iav
Nws txuas nrog txoj kev txiav thiab tuaj yeem hloov kho nyias
Zuag qhia tag nrho qhov siab hloov kho ntsia hlau pas nrig hloov kho
4.11 slitting tshuab
Cov cuab yeej tuav khoom 45 steel quenched thiab tempered galvanized
Width adjustment dawb dav trimming
Cov cuab yeej so ncej hloov kho NMRV reducer phau ntawv hloov kho
Ntim: 4sets
4.12 transverse txiav tshuab
Qhov loj ntawm cov phaj txiav tuaj yeem paub qhov ntev ntev ntawm cov khoom, thiab qhov siab tshaj plaws txiav dav yog 1800mm
Thickness ntawm txiav phaj: 2-5mm, thiab lub phaj txiav yog nyob rau ntawm txoj cai kaum
Hla pom lub cev muaj zog hla saw txais servo lub cev muaj zog nrog lub zog ntawm 1kW
Taug kev hom: txoj kev taug kev hla yog R series reducer thiab kab qhia kev tsheb ciav hlau
Chav tswj tswj yog tswj los ntawm lub teeb liab ntawm qhov ntev meter thiab tuaj yeem ua haujlwm hauv phau ntawv thiab tsis siv neeg hom.
Lub txee tswj hluav taws xob yog ywj siab thiab ua los ntawm cov pa roj carbon nruab nrab.
Txiav hom: tsis siv neeg ntsuas ntsuas, txiav
Rov qab hom pneumatic rov qab
4.13 txais platform
Bracket ntev: 1800mm × ib txhiab
Ntim: 2 pawg
Nws tuaj yeem siv ib leeg lossis ua ke raws li kev tsim khoom
