HDPE Spial Corrugated Yeeb Nkab Extruder Machinery

Lus piav qhia luv luv:

HDPE carbon sprial saj zawg zog corrugated yeeb nkab ua tshuab Beierman Hoobkas nqi zoo

HDPE Yas Spial Corrugated Yeeb Nkab Machinery Nqe Ntau Lawm Kab

Product Detail

Khoom cim npe

PE Carbon Kauv Reinforced Yeeb Nkab Cov Khoom Siv Khoom Siv Hluav Taws Xob Extruder Extrusion kab ntau lawm ua tshuab

Cov kab ntau lawm no tsuas yog siv los tsim cov PE kauv cov kav dej uas feem ntau siv los tiv thaiv lub tes tsho ntawm optic lossis hluav taws xob cable, thiab lawv tau siv ntau dua hauv kev siv hluav taws xob, kev sib txuas lus, kev ua haujlwm tom qab, kev tsim kho ntawm txoj kev, chaw nres nkoj, thiab lwm yam. yog tus cwj pwm los ntawm kev siv siab thiab tenancy, erosion kuj, qhov zoo li qub thiab kev thauj mus los yooj yim thiab kev tua, thiab lwm yam. Lawv tuaj yeem ua tiav thiab khoov rau hauv cov kav dej ntev nrog ntau yam radians.Raws li cov txiaj ntsig zoo no, lawv tau nrov heev nrog cov neeg siv khoom koom nrog ntau qhov chaw.

OD32-85 hli HDPE Kauv rajextrusionline ib

Txoj kab uas hla: 32-40-50-65-85mm

TSIS MUAJ.	Kev piav qhia ntawm cov khoom	Ntau
	Nqus khoom loader	1set ib
	Hopper Yas Tshuab ziab khaub ncaws	1set ib
	SJ65/30 Ib leeg ntsia hlau Extruder	1set ib
	Siemens PLC tswj qhov system	1set ib
	Φ32 ~ 85mm Kauv yeeb nkab ua pwm OD 32-40-50-65-85 hli	1set ib
	Lub tshuab nqus tsev tsim thiab txias tank	1set ib
	Ob-Caterpillar Haul-off tshuab	1set ib
	Ib txoj hauj lwm phaj winder rau 32 ~ 85mm kav	1set ib
	Ncej rau steel hlau	1set ib

90 ~ 320 hli HDPE Kauv rajextrusionline ib

(Cov yeeb nkab txoj kab uas hla: 90-105-110-112-130-160-180-195-200-230-260-280-320mm)

TSIS MUAJ.	Kev piav qhia ntawm cov khoom	Ntau
	Nqus khoom loader	1set ib
	Hopper Yas Tshuab ziab khaub ncaws	1set ib
	SJ90/30 Ib leeg ntsia hlau Extruder, 45kw	1set ib
	Siemens PLC tswj qhov system	1set ib
	Φ90 ~ 320mm Kauv yeeb nkab ua pwm OD 90-105-110-112-130-160-180-195-200-230-260-280-320mm	1set ib
	Lub tshuab nqus tsev tsim thiab txias tank	1set ib
	Ob-Caterpillar Haul-off tshuab	1set ib
	Ib phaj winder	1set ib
	Cov yeeb nkab stacker	1set ib
	Ncej rau steel hlau	1set ib

Technical data ntawm 32 ~ 85mm HDPE Kauv rajextrusionline ib

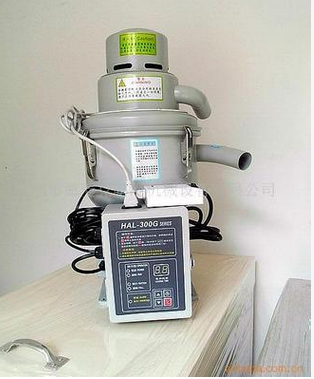

1. Lub tshuab nqus tsev loader


Pub Muaj Peev Xwm:	200KG / H

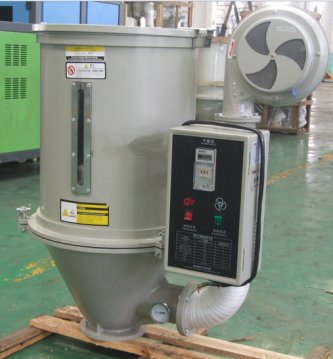

2. Hopper Tshuab ziab khaub ncaws


Hopper Kub	160 L
Pub Muaj Peev Xwm	100 KG

3. SJ65/30Ib leeg-Screw Extruder


Ntsia Hlau, Barrel	Screw thiab chim khoom 38CrMoAlA, Nitriding,Nitriding Txheej Thickness: 0.5 ~ 0.7mm, Nto Rigidity: 800 ~ 900HV
Ntsia Hlau Diameter	65mm ua
Screw Length / Diameter Ratio	30:1 ua

4.32 ~ 85mm Kauv yeeb nkab ua pwm


Pwm Specification	OD 32-40-50-65-85mm
Qhov ncauj khoom	40CR, Kev kho cua sov, tempering: HB280-300

5.Nqus Calibration Tank


Qhov ntev ntawm Nqus Tank	2500 M.M
Lub tshuab nqus tsev twj	3 KW

6. Ob tug kab ntsig Haul-tawm


HAULING OFF siv tau ntev	1000 hli
Qhov ntau ntawm kab ntsig	2 pcs
Hauling Tshuab Tsav Lub Zog	1.5 kwm

7. Ob chav phaj winder rau 32 ~ 112mm kav


Cua yeeb nkab diameter ntau	32-85 hli
Cua ceev	0.5-4m / min

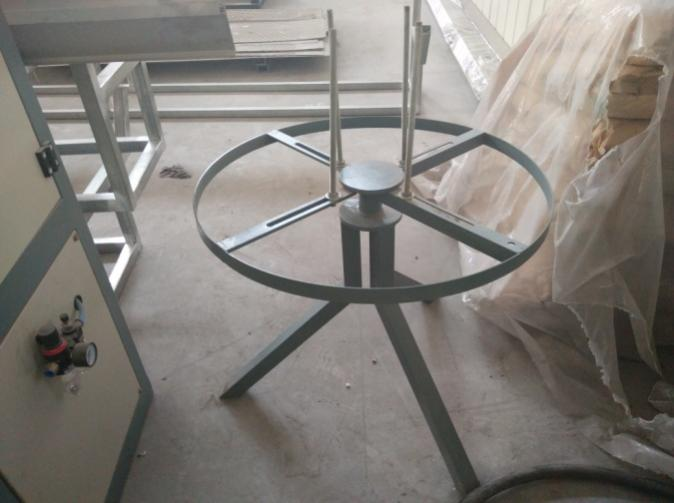

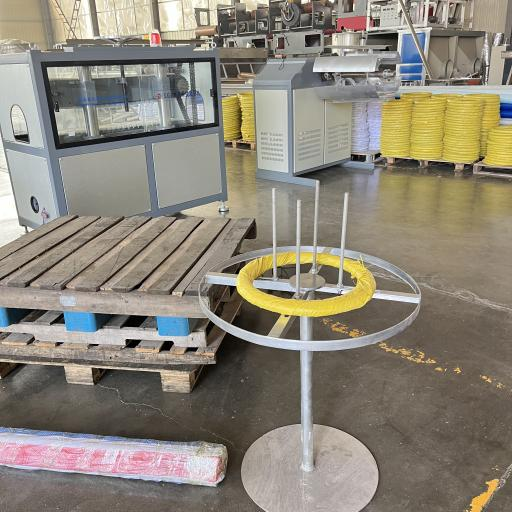

8. Hlau hlau ncej


Daim ntawv thov	Muab cov hlau hlau

Technical data ntawm 90 ~ 320mm kauv yeeb nkab tshuab

1. Lub tshuab nqus tsev loader


Pub Muaj Peev Xwm:	400KG / H
Cua twj tso kua mis zog	1.5 KW TSI

2. Hopper Tshuab ziab khaub ncaws


Hopper Kub	160 L
Pub Muaj Peev Xwm	100 KG
Lub zog cua sov	4.2 KW TSI
Blower Lub Zog	0.37 kWm

3. SJ90/30 Ib leeg-Screw Extruder


Ntsia Hlau, Barrel	Screw thiab chim khoom 38CrMoAlA, Nitriding,Nitriding Txheej Thickness: 0.5 ~ 0.7mm, Nto Rigidity: 800 ~ 900HV
Ntsia Hlau Diameter	90mm ua
Screw Length / Diameter Ratio	30:1 ua

4.90 ~ 320mm Kauv yeeb nkab ua pwm


Pwm Specification	OD90-105-110-112-130-160-180-195-200-230-260-280-320 Ib.mm
Qhov ncauj khoom	40CR, Kev kho cua sov, tempering: HB280-300
Lub tes tsho	tooj liab
Pwm nto	Kub kub xim xim thiab antirust
Flow channel	Chrome phaj, Chrom thickness: 0.03-0.05mm
Flange	Hlau board nrog galvanization, Chrome plated
