PE yeeb nkab extrusion kab 16-110mm
DESCRIPTION ntawm cov khoom:
-
Lub npe khoom
Ntau 16-110mm PE yeeb nkab ntau lawm kab SJ70/30 extruder nrog nws pib loader thiab tshuab ziab khaub ncaws(37KW lub cev muaj zog, ABB / Delta inverter, siemens contactor, ORMON / DELTA Kub tswj ntsuas nrog cov zis 150-180kg / h 1set ib SJ30 xim kab extruder rau cov kab kos 1set ib 16-110mm yeeb nkab pwm / tuag taub hau thiab tuag tus pin thiab tuag bushing 1set ib 6m lub tshuab nqus tsev tank nrog 304 stainless 1set ib 6m dej txias tank 1set ib Tshem tawm chav tsev yam tsis muaj qhov rais thiab ncej 1set ib Cutter tshuab 1set ib Stacker 1set ib Ob chav txoj haujlwm winder 16-40mm 1set ib Spare xeem dawb Test yeeb nkab tshuab nqi 10HP cua chiller cua txias hom dej chiller 1set ib Crusher 20-110mm swp400 nrog 18.5kw 1set ib Laser tshuab luam ntawv 1set ib Cua compressor 11kw 1set ib Vuam tshuab rau hdpe kav 32/110mm 1set ib
HDPE 110mm yeeb nkab extrusion ntau lawm kab
Kev piav qhia dav dav:
1, Khoom loj: PE yeeb nkab OD16-OD110mm,Yeeb nkab phab ntsa thickness raws li tus neeg yuav khoom yuav tsum tau
2, Max tso zis muaj peev xwm: 180kg / h
3, Inlet Cooling dej kub: <25 ℃ Cua siab:> 0.6Mpa
4, Fais fab mov: 3Phase / 380V / 50HZ
5.fit rau PE tshiab thiab cov khoom siv rov ua dua tshiab.
6.Design L rau yeeb nkab machine.length nyob rau hauv 21meters
16-110 PE yeeb nkab ntau lawm kab
A. Cov tshuab tsim nyog rau 16-110mm PE Yeeb Nkab Extrusion Kab
1 teeb tsis siv neeg lub tshuab nqus tsev loader
1set ntawm hopper tshuab ziab khaub ncaws
1 txheej Ib-Screw Extruder - SJ65/33
1 teeb ntawm SJ25/25 co-extruder
1 teeb tsis siv neeg tshuaj ntsuam hloov pauv
1 ua tiav Pwm rau 16-110mm
1 teeb ntawm Nqus Calibration thiab Dej Txias Tank
1 teeb ntawm ob pedrails tsheb laij teb
1 teeb dawb plua plav Cutter
B.Paub meej Technical Parameters ntawm Txhua Saum toj \ tshuab
Cov txheej txheem ntws ntawm PE yeeb nkab ntau lawm kab raws li hauv qab no:
Khoom noj khoom haus → Hopper tshuab → Extruding & Moulding → Nqus Calibration thiab txias → Tshuab luam ntawv → Hauling tawm → Txiav → kawg PE yeeb nkab
1.Automatic khoom loader
| NO | Kev piav qhia | Chav tsev | ZJ-200 |
| ﹡ ua hauj lwm hauv paus ntsiab lus: lub tshuab nqus tsev nqus tsev vacuum﹡ tsis siv neeg pib thiab nres qhov kev thauj khoom | |||
| Muaj nuj nqi: them PE granules rau hauv lub tshuab ziab khaub ncaws | |||
| 1 | Static siab max. | Pa | 9800 ua |
| 2 | Lub cev muaj zog | KW | 1.1 |
| 3 | Cov khoom siv hluav taws xob xav tau | Raws li kev thov | |
| 4 | muaj peev xwm | 5m | 200kg / h |
| 10 m | 150kg / h | ||
| 5 | Suction hopper ntim | L | 10 |
1.1 teeb ntawm Hopper tshuab ziab khaub ncaws
| NO | Kev piav qhia | Chav tsev | Lus hais |
| 1 | Lub taub hau | mm | 600 |
| 2 | Khoom siv | / | Stainless hlau |
| 3 | Pom iav qhov rais | / | yog |
| 4 | Down slide door phaj | / | yog |
| 5 | Lub zog cua sov | Kw | 9 |
| 6 | Lub zog ntawm lub tshuab cua tshuab | kw | 0.55 ib |

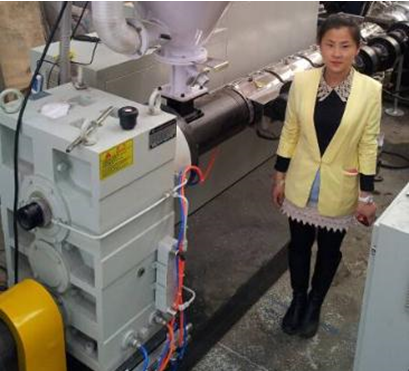

3. 1 teeb ntawm SJ65/33 ib leeg ntsia hlau extruder
| ﹡Screw, chim tsim thiab raug nqus European advanced technology (los ntawm lub tuam txhab nto moo loj ntsia hlau chim)﹡Screw thiab chim khoom: 38CrMoAlA, nitriding kho ﹡ Tshwj xeeb ntsia hlau rau PE cov khoom ua kom zoo plasticizing nyhuv ﹡ txais thawj cov khoom siv hluav taws xob nto moo nrog kev ua haujlwm ruaj khov. ﹡Gearbox: siab torque, tsis tshua muaj suab nrov, nyuaj iav hniav lub ntsej muag nplooj siab extruder iav thawv ﹡ Kev tiv thaiv tus kheej: Tshaj tam sim no tiv thaiv lub cev muaj zog Tshaj siab tiv thaiv ntawm cov ntsia hlau | ||
| Kev piav qhia dav dav | Lub ntsiab hluav taws xob | zaus inverter: ABB / deltaAC Contactor: Schneider lossis siemens Kev hloov pauv huab cua: Schneider Kub tswj: omron / delta Voltage meter thiab tam sim no meter: DELIXI |
| Tso zis | Nyob ib ncig ntawm 200 kg / h | |
| Txuas hom extruder thiab pwm | Bolt kev twb kev txuas | |
| Qhov zoo | Cov khoom tseem ceeb txais cov khoom lag luam zoo tshaj plawsKev tswj xyuas nruj raws sijhawm | |
| Ntsia hlau | Txoj kab uas hla (mm) | 70 hli |
| L/D | 30/1 | |
| Khoom siv | 38CrMoAlA, Nitrogen kho | |
| Cua sov | Casting aluminium rhaub nrog stainless hlau sab nrauv npog | |
| Cua sov ntu | 5 zoj | |
| Lub zog cua sov | 20 kwv | |
| chim | Hom chim | Nrog kev pub noj groove;Dej txiasinlet lub cev |
| Txias | Cua txias los ntawm blower,Kev tswj qhov kub thiab txias: ± 1 ℃ | |
| Cua txias ntu | 5 ntu | |
| Khoom siv | 38CrMoAlA, Nitrogen kho | |
| Tsav thiabQhov system kis | Main lub cev muaj zog (KW) | 37kw nto moo hom nyob rau hauv Suav teb |
| Ceev kho hom ntawm lub ntsiab lub cev muaj zog | Kev hloov pauv ntau zaus | |
| Rotating ceev ntawm lub ntsiab lub cev muaj zog (r / min) | 1500r / min | |
| Iav lub thawv | Hard iav hniav ntsej muag Tsawg suab nrov tsimNcej: NSK ntawm Nyiv Khoom siv ntawm iav: 20CrMnTi | |
4. 1 teeb ntawm cov cim kab co-extruder SJ25/25
| Yam khoom | Kev piav qhia | Chav tsev | SJ25/25 |
| 1 | Txoj kab uas hla ntawm Screw | mm | 25 |
| 2 | Qhov ratio ntawm qhov ntev mus rau txoj kab uas hla |
| 25: 1 |
| 3 | Tso zis | Kg / h | 1.5-10 |
| 4 | Kev sib hloov ceev ntawm cov ntsia hlau | rov/min | 5-50 |
| 5 | Cov khoom siv ntawm Screw chim thiab Screws |
| 38CrMoAlA |
| 6 | Iav lub thawv |
| Lub ntsej muag tawv tawv, tsis tshua muaj suab nrov tsim |
| 7 | Cua sov Capacity ntawm Screw chim | KW | 6 |
| 8 | Cua sov thaj chaw ntawm lub thoob |
| 2 |
| 9 | Main Lub cev muaj zog | Kw | 0.75 ib |
| 10 | Ceev Kho hom |
| zaus conversion |
| 11 | Cooling rau lub thoob |
| Cua ntws txias, 2- thaj chaw |
| 12 | Qhov siab ntawm Screw Axes | mm | 1000 |
| 13 | Kub tswj |
| Hom Lub Npe: omron, Nyiv |
| 14 | Zaus Converter |
| Hom Tshuaj:ABB, Nyiv |
| 15 | Daim duab dimension | mm | 1450 × 450 × 1500 hli |
| 16 | Qhov hnyav | kg | 250 |

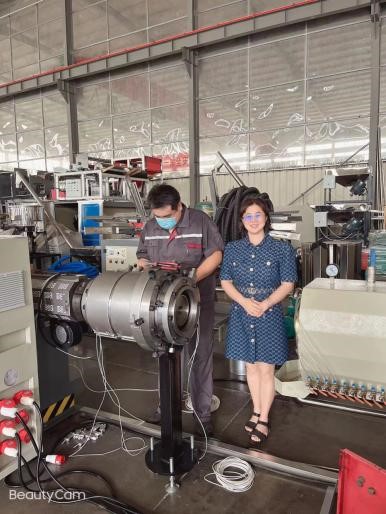

5. 1 txheej pwm rau HDPE kav nrog txoj kab uas hla ntawm 16-110mm
| Yam khoom | Kev piav qhia | Chav tsev | Lus ceeb toom | ||||
| ﹡ Tshiab hom calibrator ua kom cov cua txias zoo thiab kev kub ceev extrusion | |||||||
| 1 | Txoj kab uas hla (OD) | mm | 16-110 hli | ||||
| 2 | Phab ntsa thickness | / | raws li tus neeg thov kev thov | ||||
| 3 | Cov khoom siv pwm | / | 40 Cr | ||||
| 4 | Khoom siv ntawm calibration Bushing | / | Sternum Bronze tooj liab | ||||
| Specification | Phab ntsa thickness PN10 (SDR17) | Phab ntsa thickness PN16 (SDR11) | |||||
| 16 hli | 1.8mm (SDR9) | ||||||
| 20 hli | 1.9mm ib | ||||||
| 25 hli | 1.8mm ib | 2.3mm ib | |||||
| 32mm ib | 1.9mm ib | 2.9mm ib | |||||
| 40 hli | 2.4mm ib | 3.7mm ib | |||||
| 50 hli | 3.0mm ib | 4.6mm ib | |||||
| 63mm ua | 3.8mm ib | 5.8mm ib | |||||
| 75mm ua | 4.5mm ib | 6.8mm ib | |||||
| 90mm ua | 5.4mm ib | 8.2mm ib | |||||
| 110 hli | 6.0mm ib | 10.0 hli | |||||
6. 1set uaNqus Calibration thiab txias tank
| NO | Kev piav qhia | Chav tsev | Lus ceeb toom |
| ﹡ automatic dej theem tswj﹡ hluav taws xob txee nrog tiv thaiv dej ﹡ forceful concentrated spraying water cooling with good cooling effect ﹡ lub tshuab nqus tsev twj tso kua mis thiab lub twj tso kua dej siv lub twj tso kua mis ntse nrog kev tiv thaiv tus kheej ﹡ Zoo meej pipeline tsim tuaj yeem ua kom tsis muaj qhov thaiv
| |||
| Muaj nuj nqi: calibrate cov diameters sab nraud thiab cov yeeb nkab txias feem ntau | |||
| 1 | Ntev ntawm lub tank | mm | 6000 |
| 2 | Khoom siv ntawm lub tank dej | Stainless hlau, SUS304 | |
| 3 | Sizing bushing khoom | Stannum-bronze | |
| 4 | Txias hom | Txau-txias cua txias | |
| 5 | Ncuav qhov chaw | 4 | |
| 6 | Lub tshuab nqus dej zog | KW | 1.5kw × 2set |
| 7 | Lub tshuab nqus tsev twj tso kua mis | KW | 4 kwv |
1 set ntawm Hauling off Machine
| NO | Kev piav qhia | Chav tsev | Lus ceeb toom |
| ﹡ Pneumatic clamping, hloov kho zaus hloov kho﹡ txais lub npe nrov lub tog raj kheej | |||
| Muaj nuj nqi: rub tawm PE yeeb nkab ruaj khov thiab synchronal nrog extruder ceev | |||
| 1 | Muaj pedrail ntev | mm | 1400 |
| 2 | Clamping hom | Pneumatically | |
| 3 | Ceev Kho hom | Kev hloov pauv zaus | |
1 teeb lub tshuab luam ntawv laser
1 set ntawm meter suav cutter
| NO | Kev piav qhia | Chav tsev | Lus ceeb toom |
| tsis siv neeg plua plav dawb txiav, nrog ntsuas ntsuas muaj nuj nqi﹡Saw hniav txais carbide hniav Lub tswb ceeb toom thiab suav cov khoom siv plua plav dawb dawb | |||
| Muaj nuj nqi: txiav HDPE yeeb nkab ntev ntev | |||
| 1 | Cutter hom | Tsis siv neeg 'meter' suav cutter | |
| 2 | Tsim nyog txiav yeeb nkab txoj kab uas hla | 16-110 hli | |
| 3 | Txiav ceev | Synchronization, tsis siv neeg txiav hauv qhov ntev | |
| 4 | Lub cev muaj zog | KW | 2.2 |
| 5 | Khoom ntawm Txiav Saw | Hlau alloy | |
| 6 | Clamping hom | Pneumatically Tsav | |
| 8 | Qhov siab tshaj plaws txiav thickness | mm | 18 |
| 9 | Tsim nyog txiav ceev | m/min | 12 |

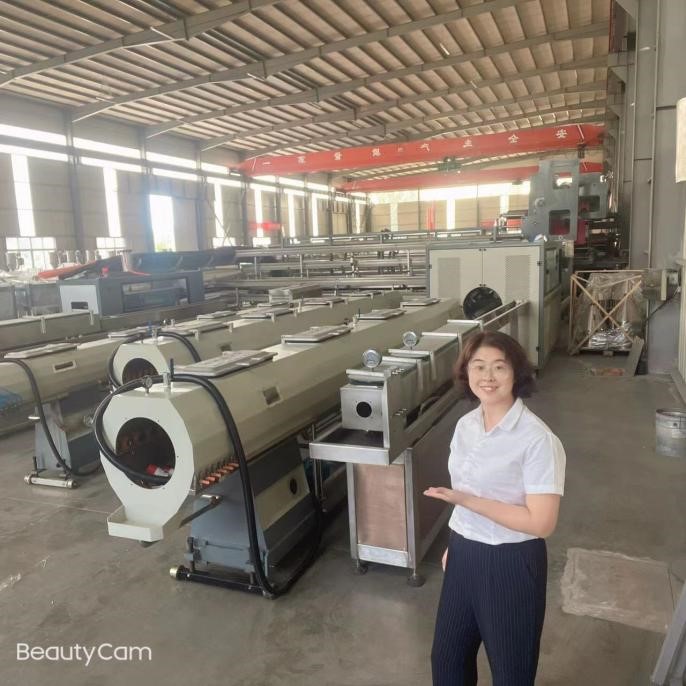

Yees duab:
Parameters thiab configuration rooj ntawm chiller
| Configuration Detailed | 1 | Compresso: Panasonic, Nyiv (Tag nrho cov hom scroll, 5P * 2sets) |
| 2 | Cov khoom siv hluav taws xob: Schneider, Fabkis | |
| 3 | Lub twj tso kua mis dej: Qhov chaw ntawm Taiwan, Tuam Tshoj (Nov: 13m, ntws tus nqi: 12m³, Yeeb nkab txoj kab uas hla: DN40) | |
| 4 | Evaporator: Shunyike | |
| 5 | Condenser: Shunyike | |
| 6 | Qhuav lim: Zhejiang Hongsen | |
| 7 | Expansion valve: Zhejiang Hongsen | |
| 8 | Fan: Qingdao Juwei | |
| 9 | Microcomputer tswj vaj huam sib luag: Taiwan Bangpu | |
| 10 | Cov tub yees: Dongyue R22 | |
| 11 | Copper yeeb nkab: Jinlong Longyu (1.0mm) | |
| 12 | Kev ruaj ntseg thiab kev tiv thaiv: Compressor overheat tiv thaiv, overcurrent tiv thaiv, siab thiab tsis tshua muaj siab tiv thaiv, overtemperature tiv thaiv, theem ib theem / theem tiv thaiv, tso pa overheat tiv thaiv. | |
| Lus hais | 1 | Cov kev teeb tsa saum toj no tuaj yeem kho raws li cov neeg siv khoom xav tau. |
| 2 | Cov lus hais no siv tau rau 7 hnub vim qhov hloov pauv loj ntawm cov yeeb nkab tooj liab tus nqi nyob rau hnub tsis ntev los no | |
| 3 | Lub tshuab tag nrho yog lav rau ib xyoos thiab muab kev pabcuam rau lub neej. |
Lus Cim: 1.Lub tub yees muaj peev xwm ua tau raws li: dej khov dej inlet thiab qhov hluav taws xob dej kub 7 ℃ / 12 ℃, cua txias inlet thiab qhov hluav taws xob cua kub 30 ℃ / 35 ℃.
2.Scope ntawm kev ua hauj lwm: khov dej kub ntau yam: 5 ℃ to35 ℃; khov dej inlet thiab qhov hluav taws xob kub sib txawv: 3 ℃ to8 ℃, ambient kub tsis siab tshaj 35 ℃.
Tuav txoj cai los hloov cov kev txwv saum toj no lossis qhov ntev yam tsis muaj ntawv ceeb toom.
