COD PIPE LINE

Lus piav qhia luv luv:

Product Detail

Khoom cim npe

110 hli corrugated optic duct (COD)

Corrugated Optic Duct / Cod Spiral Pipe Tube Ua Tshuab Ntau Lawm Machinery

COD yog dab tsi?

1. Ntau Channel Cable Duct
COD yog suav nrog kev sib koom ua ke hauv duct & cov yeeb nkab sab nraud.Nws qhov loj & qty ntawm cov kav dej sab hauv tuaj yeem hloov pauv raws li tus neeg siv khoom thov.

2. Cod = corrugated optic duct machinery

2. HDPE (High Density Poly Ethylene)
COD yog ua los ntawm 100% HDPE uas muaj lub zog siab & muaj zog compressive quab yuam.

vim nws cov txiaj ntsig zoo heev & nqi qis.
Qhov zoo ntawm COD

1. Txuag nqi installation
30 - 50% Tus nqi txuag piv rau cov pa hluav taws xob ua haujlwm
(PVC yeeb nkab + Cov yeeb nkab sab hauv)

2. Muaj rau nruab los ntawm qhov chaw nqaim
Pa system: Loj Trench (1 Meter dav & 1.2 Meter qhov tob) yog qhov tseem ceeb.
COD: 0.2 - 0.3 Meter Dav & 0.5 Meter Qhov tob xwb.

3. Kev teeb tsa ceev
- Ib txwm Excavator: 1,000m / hnub kev teeb tsa muaj (8 teev ua haujlwm / hnub)
- Tsis siv neeg excavator: 3,000m / hnub kev teeb tsa muaj.
- Lub sij hawm installation;nws yog ceev 20 ~ 30 npaug tshaj li cov pa system

4. Tsis tas yuav txuas ntawm manhole
- Manhole xav tau txhua 500m lossis 1,000m yam tsis muaj kev sib txuas.
- Tsis xav tau kev sib txuas rau qhov chaw nkhaus.

Ob lub ducts sab hauv thiab sab nraud ntawm COD yog ua los ntawm HDPE nrog tib cov khoom siv raw, uas yog lub cev sib txawv.

- COD siv los tiv thaiv fiber ntau cables

- Cov qauv tsim tshwj xeeb (Cov ducts sab nraud yog kauv corrugated hom, duct sab hauv yog duct ncaj)

- Nws muaj peev xwm muab tau los ntawm 2 ntawm cov kav dej sab hauv mus rau 11 ntawm cov kav dej sab hauv raws li cov neeg siv khoom thov.

- COD tuaj yeem xa mus rau qhov ntev txuas ntxiv ntawm yob los ntawm 300M txog 1,000M

Lub npe khoom

Ntau

(set)

SJ65/38 kev kub ceev Inner yeeb nkab extrusion kab

MICROUCT BUNDLE LINE

1.Tsis siv neeg loader thiab tshuab ziab khaub ncaws
2.SJ65 / 38 ib leeg ntsia hlau extrruder nrog 200kg / h yeeb nkab ceev txog 20m.min
3.Yeeb nkab tuag taub hau rau 25mm, 32mm, 38mm, 28mm
4.Lub tshuab nqus tsev txias tank
5.Pipe rub tawm
6.Tube cutter
7.Pipe winder 1000m nrog 7 teeb yeeb nkab kab phaj

1set ib

Sj90/30 cod txheej yeeb nkab kab

1.Automatic loader thiab tshuab ziab khaub ncaws

2. Sj90/30 ib leeg ntsia hlau extruder

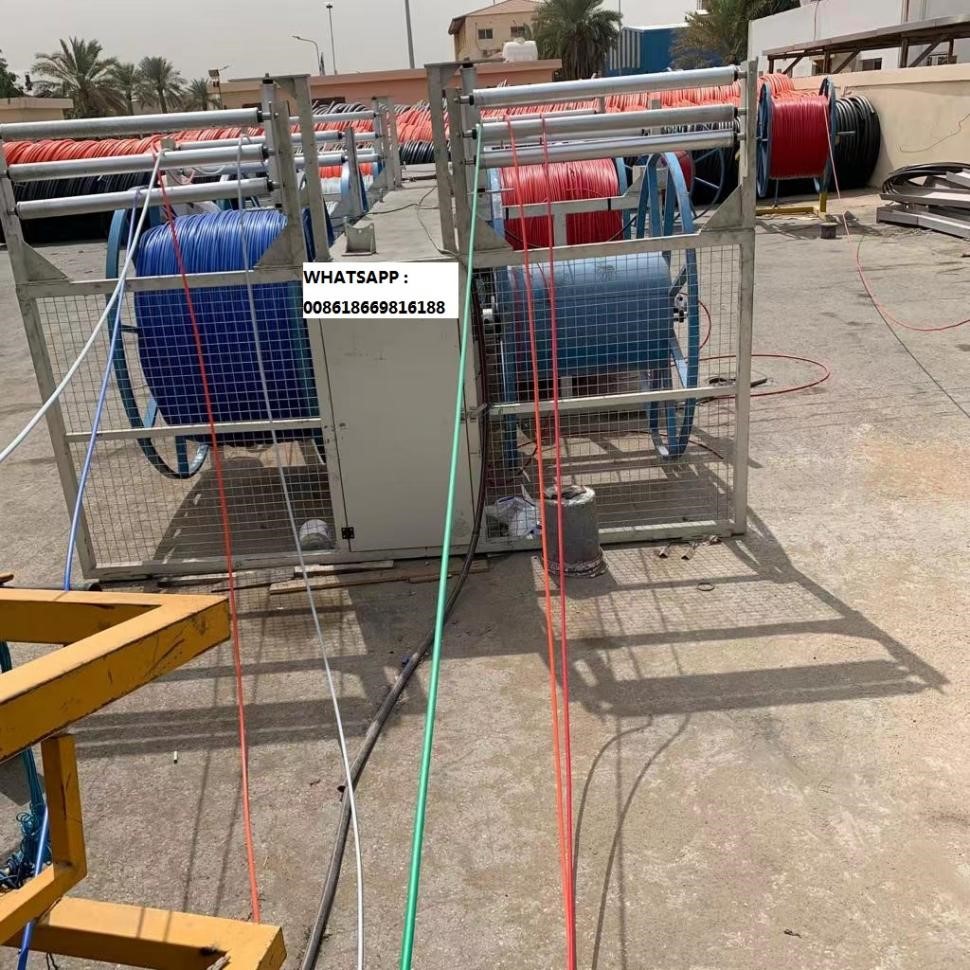

3.Unload yeeb nkab rooj nrog 7 teeb

4.Guiding Device nrog 7 teeb

5. tshem tawm tshuab

6. tshuab txiav

7.JPJ-3500 loj yeeb nkab winder tshuab

1set ib

Technical Specification ntawm COD Cable Yeeb Nkab Ntau Lawm Kab

Sab hauv yeeb nkab ntau lawm kab

I. SJ-65/30 ib leeg ntsia hlau extruder 1set ib

Qhov no extruder yog tsuas yog siv rau extruding cov kav dej thiab nws yog txawm peem rau nrog ib tug tawv hniav nto ceev reducer, ob lub iav thiab cov axis yog ua los ntawm hlau alloy thiab tau ua tiav los ntawm nitriding thiab sib tsoo.Cov khoom siv ntawm cov ntsia hlau thiab lub thawv them nyiaj yog 38CrMoALA nrog kev kho nitrogen.Cov ntsia hlau txais tshwj xeeb hom kev tiv thaiv lub vijtsam plasticization vaj huam sib luag, nws muaj autoregulation digital zaub switchboard thiab Siemens contactor.Lub ntsuas kub tswj ntsuas yog RKC ua nyob rau hauv Nyiv.Nws lub cav tseem ceeb yog tswj hwm zaus thiab nws tau nruab nrog lub tshuab them nyiaj tsis siv neeg.

Main technical parameter:

Screw txoj kab uas hla: φ65

L/D 30:1

Tig ceev ntawm cov ntsia hlau: 10-100r / min

Extruding tso zis (max): 80-120kg / h

Lub zog cua sov: 22KW

Lub cev muaj zog: 37KW

High-speed extruding Tuag taub hau

Nws yog ua los ntawm high-zoo tuag steel, nws muaj ib tug high degree ntawm raug thiab lub neej ntev-ntev.Nws muaj peb coextruding flow passage thiab ib tug kauv qauv yog li nws muaj qhov zoo ntawm kev kub ceev, txawm extruding thiab tsis tshua muaj siab ntawm lub taub hau tuag.

1. COD 110 mm hauv 5 sub-duct (5 x 33 mm / 28mm) nrog PP hlua 6 hli
2. COD 110 mm hauv 3 sub-duct (3 x 42 mm / 38mm) nrog PP hlua 6 hli
3. COD 110 mm hauv 4 sub-duct (4 x 38 mm / 32mm) nrog PP hlua 6 hli
4. COD 110 mm hauv 7 sub-duct (7 x 29 mm / 25mm) nrog PP hlua 6 hli
5. COD 77 mm nrog Peb Lub Nkoj Sab hauv

IV.SGZJ-75 Lub tshuab nqus tsev nqus dej

Lub tshuab no tsuas yog siv rau qhov loj thiab txias ntawm cov kav dej.Nws yog nruab nrog lub tshuab nqus tsev twj tso kua mis thiab cov twj tso kua dej siv rau qhov ntsuas thiab txias.Lub twj tso kua mis dej siv cov dej ntws hauv lub thawv, ob qho tib si muab thiab tso dej yog tswj los ntawm li qub.Nws tau nruab nrog lub cuab yeej uas tuaj yeem kho lub hauv ntej thiab tom qab, sab laug thiab sab xis, siab thiab qis kom nws paub txog kev hloov kho 3D.Cov khoom tseem ceeb ntawm lub tshuab yog ua los ntawm cov hlau tsis muaj steel yog li qhov zoo ntawm cov dej ntws tau zoo tuaj.

Main technical parameter:

Qhov ntev ntawm lub tshuab nqus tsev vacuum: 6000mm

Lub tshuab nqus tsev twj tso kua mis lub zog: 4KW

Lub zog ntawm lub twj tso kua mis: 3KW

Lub cev muaj zog lub cev muaj zog: 0.75KW

Txoj kev ua kom txias: tshuaj tsuag hom dej txias

SGPL-75 Spray Dej Trough

Lub tshuab no tsuas yog siv rau qhov thib ob tshuaj tsuag txias ntawm cov kav dej.

Main technical parameter:

Qhov ntev ntawm lub tshuab nqus tsev vacuum: 6000mm

Lub zog ntawm lub twj tso kua mis: 3KW

Txoj kev ua kom txias: tshuaj tsuag hom dej txias

VI.SLQ-75 Hauling Tshuab

Lub tshuab no tsuas yog siv rau kev molding thiab thauj cov kav dej, lub hauling lub cev muaj zog yog tswj tau thiab cov transducer yog Fuji ua nyob rau hauv Nyiv.

Siv tau ntev ntev: 800mm

Number of pedrail: 2

Hauling ceev: 0.3-18m / miu

Lub cev muaj zog: 2.2KW

VII.SGJQ-2000 Coiling tshuab

Lub tshuab yog tsuas yog siv rau coiling ntawm cov kav dej.Nws adopts memental coiling.

Main technical parameter:

Tawm tawm torque: 10N.M

Coiling txoj kab uas hla (max) φ2600mm

Coiling meter: 1000m
